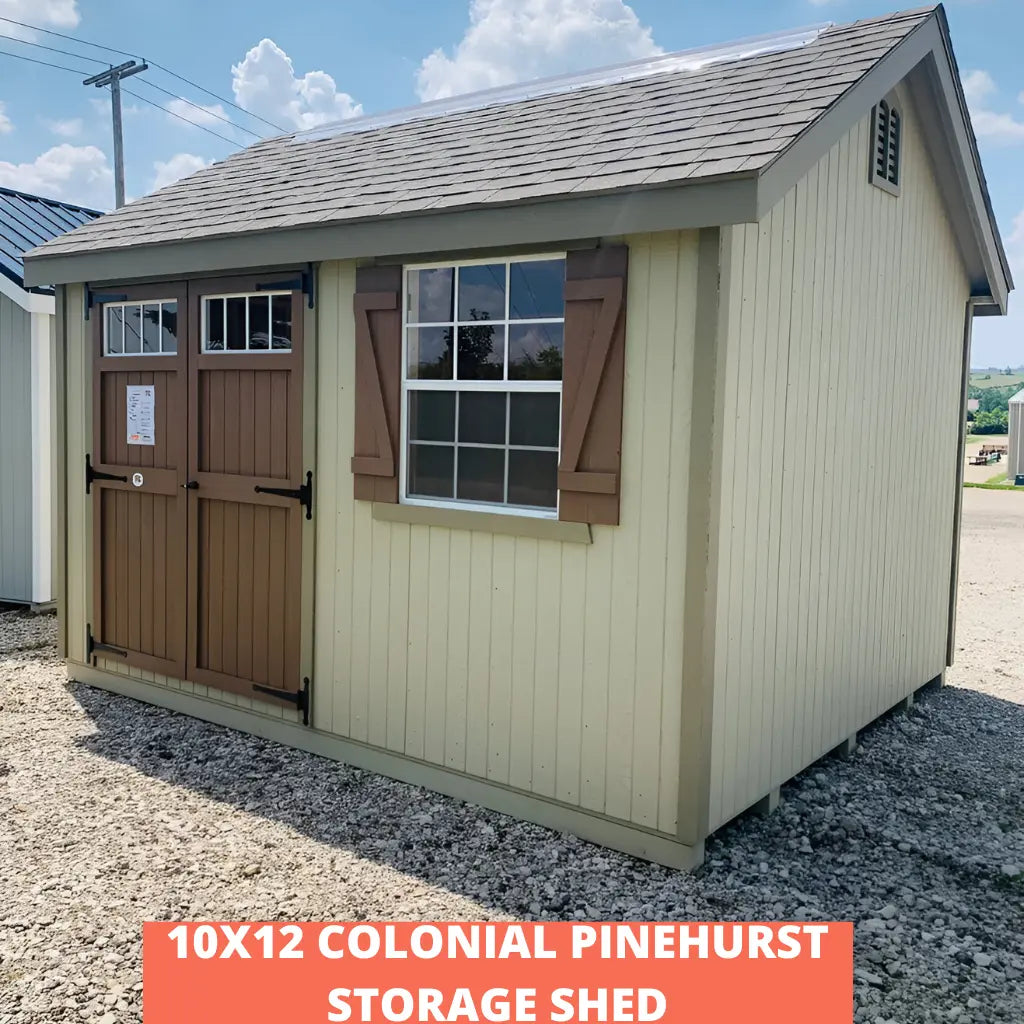

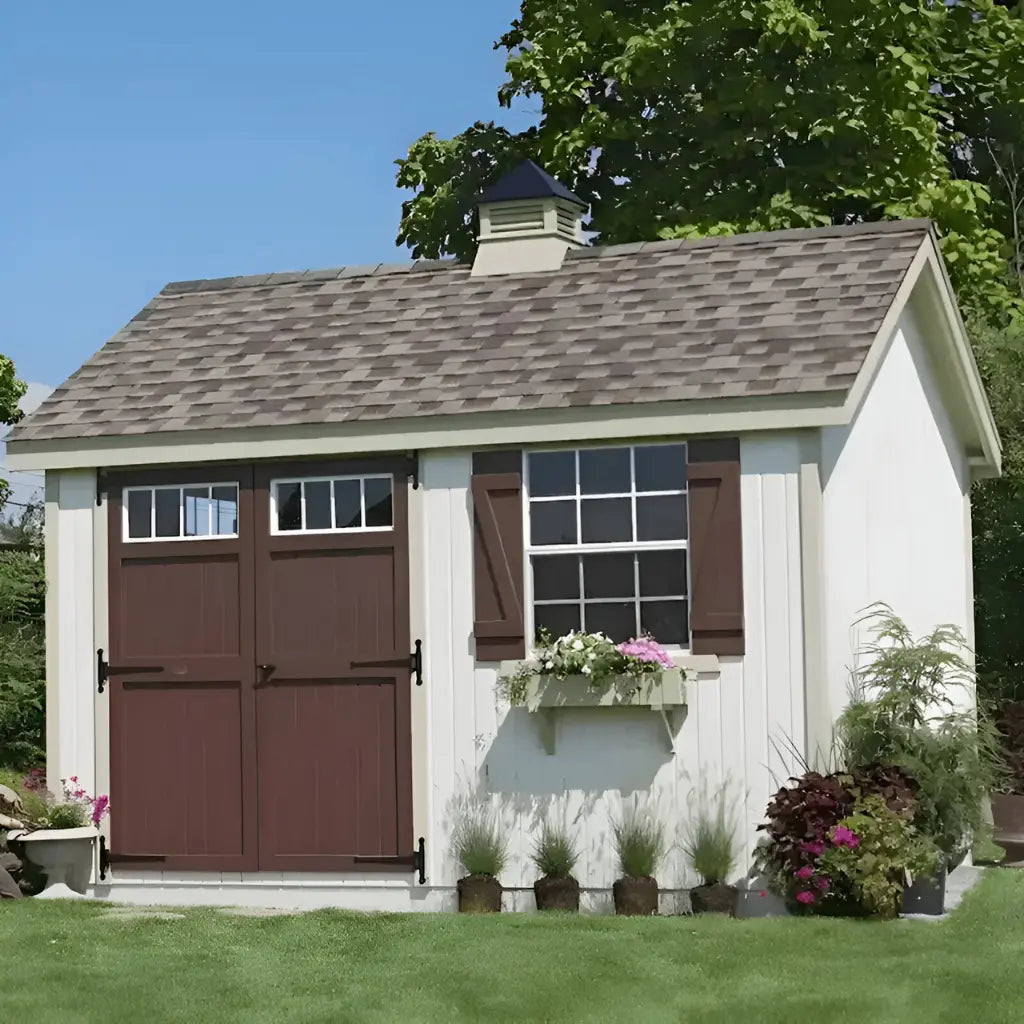

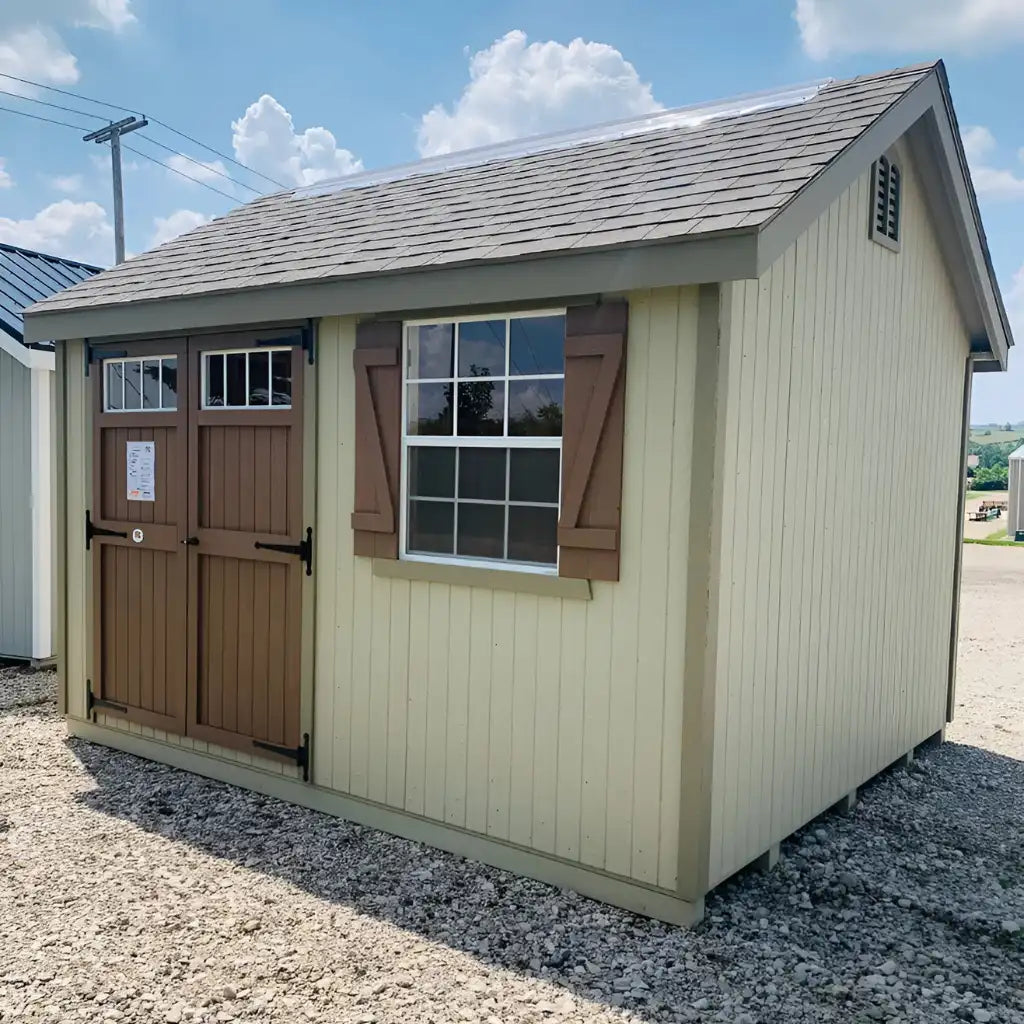

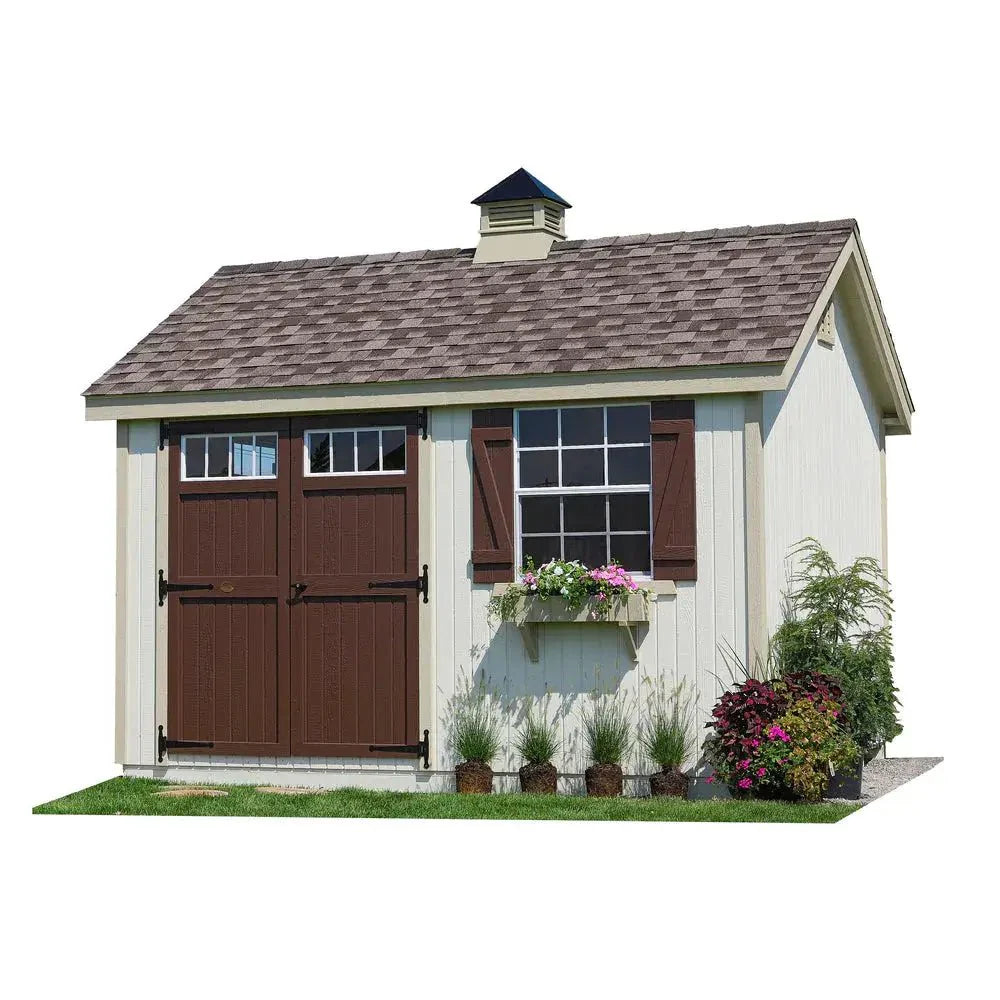

Little Cottage Co. Colonial Pinehurst Storage Shed Kit

Little Cottage Co. Colonial Pinehurst

Build your dream garden and add value to your property, with our Colonial Style Garden Sheds!

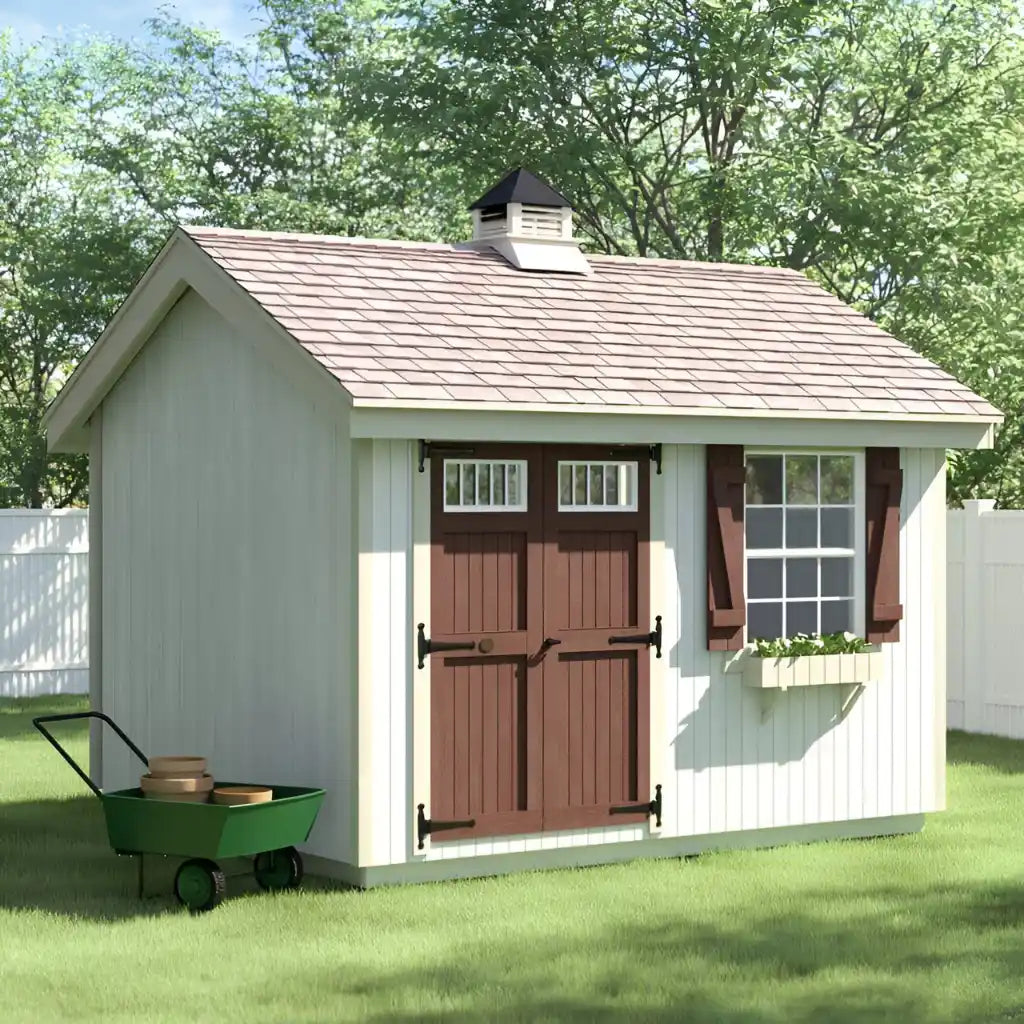

Upgrade your backyard storage with ease and style using the Colonial Pinehurst Garden Shed Kit, crafted by skilled Amish artisans. This charming shed boasts pre-sided wall panels and pre-cut pieces, ensuring a hassle-free assembly process. You can choose the pre-cut version to save some cash.

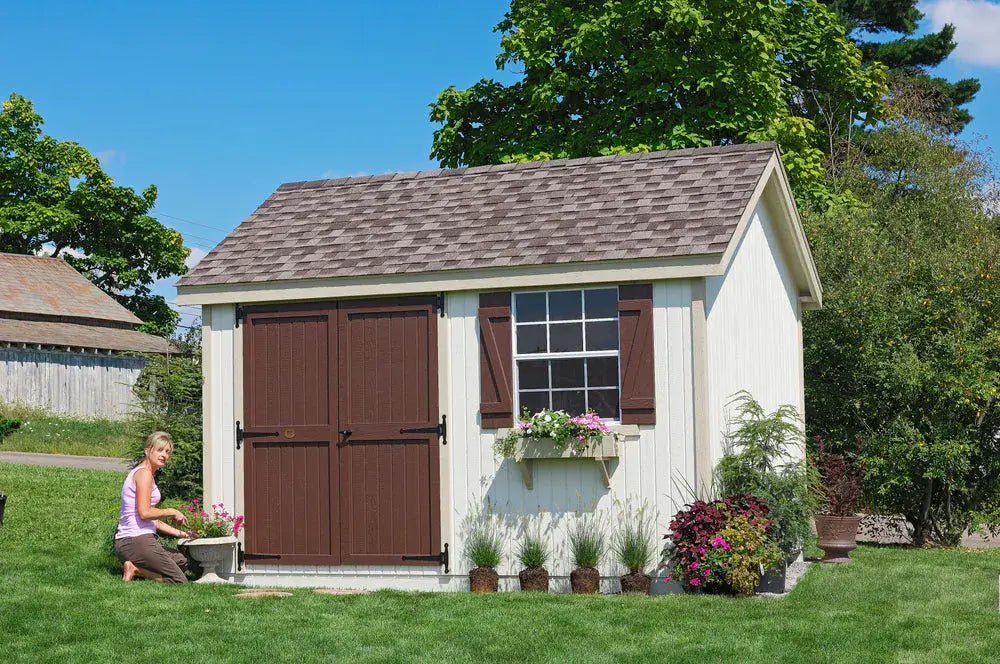

But why settle for an ordinary shed when you can have one with Colonial doors, adding an old-world elegance that is sure to impress? Elevate its appeal with some additional add-ons like transom windows and a cupola kit, so your shed stands out with a unique flair. And with a window that features Z-shutters and a screen, be prepared for more than a few compliments.

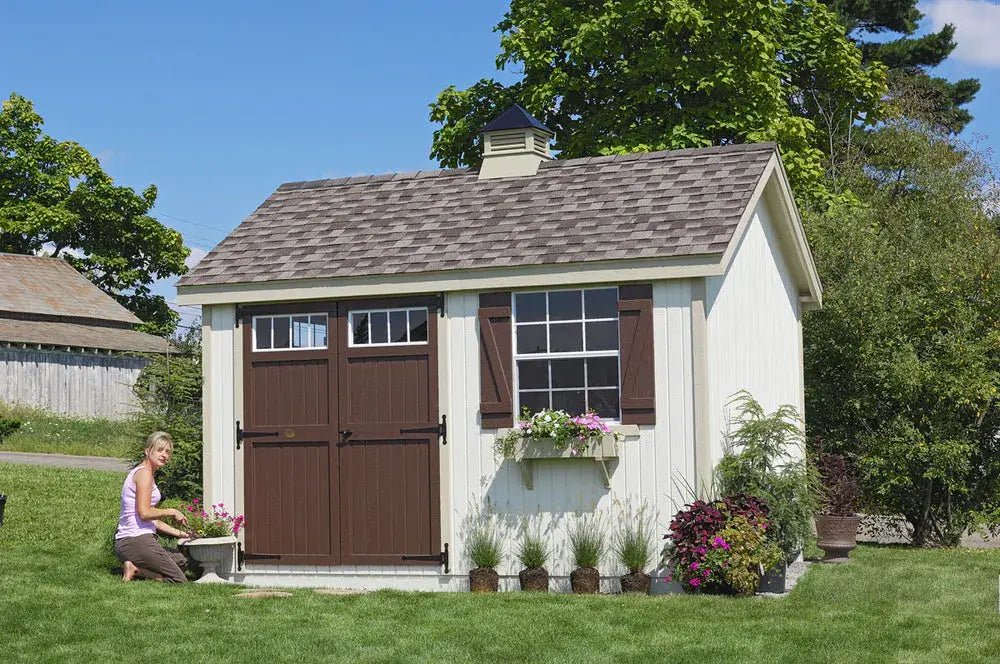

A variety of options are also available including more windows, flower boxes, transom windows, and cupolas! Adding style and charm to your Colonial Pinehurst Shed.

This Colonial Pinehurst shed is available in 17 sizes from 8′ x 8′ up to 12′ x 24′.

Panelized Kits: Come in pre-assembled panelized sections. Wall siding is already attached to the wall framing. Already pre-assembled as much as possible before shipped to you. Easier to put together and saves significant time. All hardware and screws are included.

Pre-Cut Kits: Comes with all wood pre-cut to exact lengths. No cutting required. You must assemble the pieces into sections and then put the sections together. All hardware and screws are included. No Customizations on Pre-Cut Structures.

Click to Download Delivery Instructions

Lead time for production is 5-10 days for the pre-cut kits and 4-6 weeks for the panelized kits.
Shipping time is 2-9 days depending on the distance from our site in Wisconsin to your home.

IMPORTANT NOTE:
You are required to offload the shipment - either a forklift or 2-3 people on the day of the delivery to manually unload the pieces on the pallet one by one. Each individual piece weighs around 1-100 lbs. so it is fairly easy to do with 2-3 people. Some customers have friends/neighbors/family assist, or hire 2 people. FedEx will schedule the delivery date and time that works for you.

DIMENSIONS:

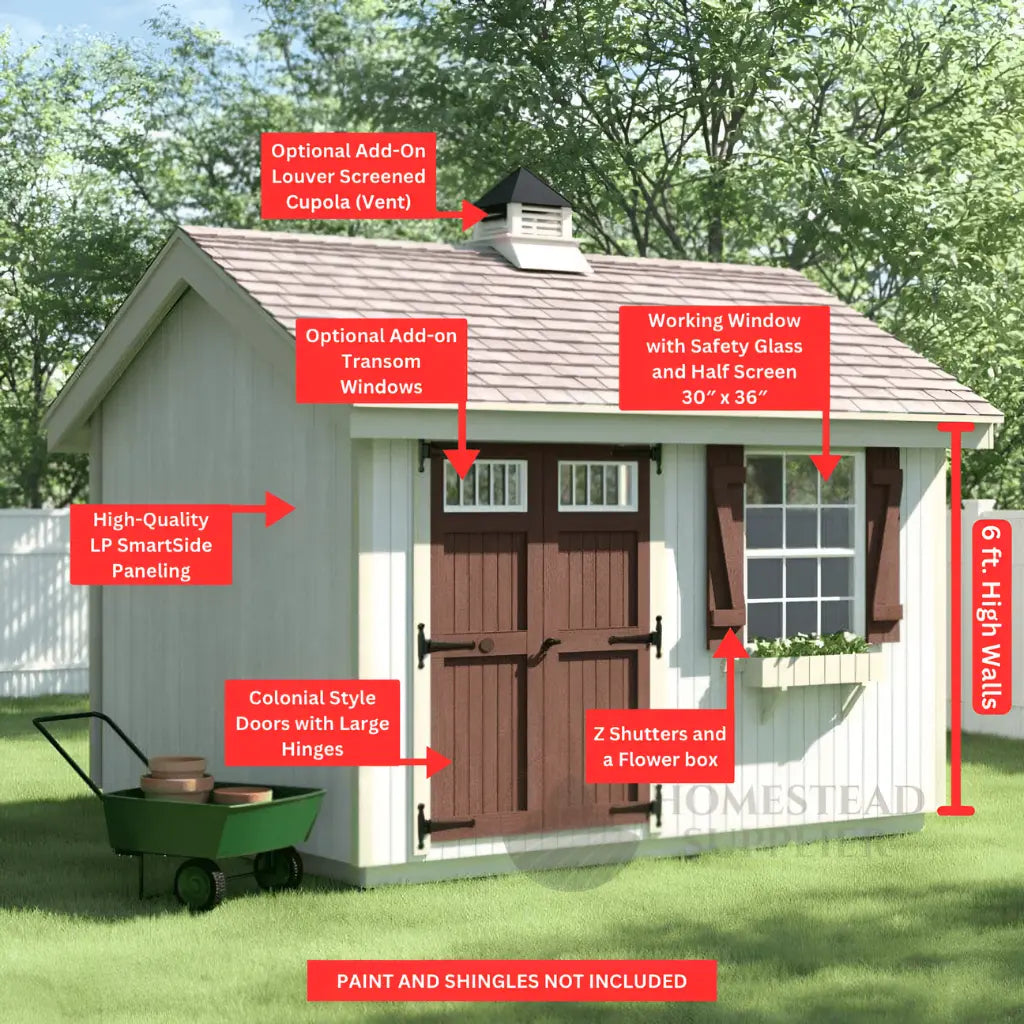

FEATURES:

• Amish craftsmanship ensures the shed is built with the utmost attention to detail and quality, making it an exceptionally durable structure.

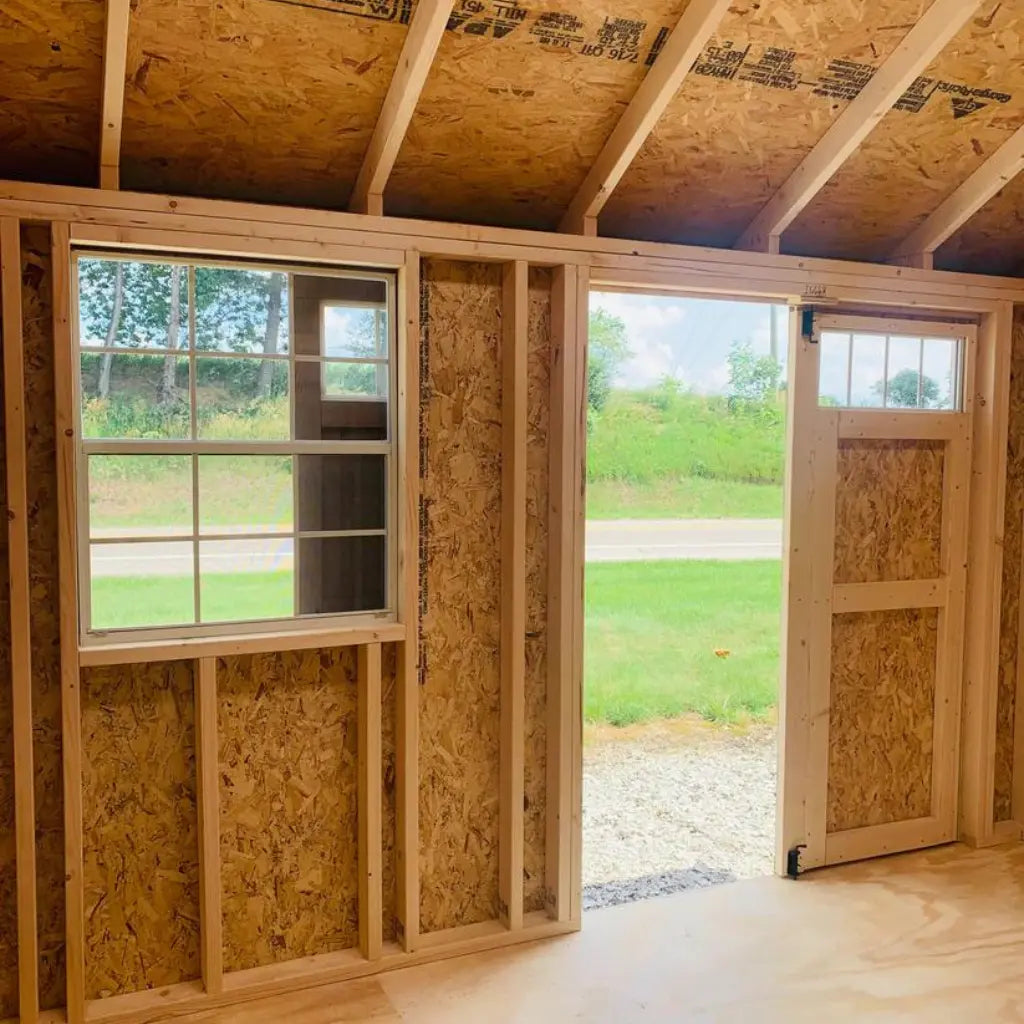

• An expansive 30x36 window, complete with a screen and Z-shutters, provides an unobstructed view and reliable protection from unwelcome visitors.
• The LP Smartside Paneling is primed and ready to be painted, making it easy for you to customize your shed to fit perfectly with your outdoor space.
• The shed's roof is designed with a 7/12" pitch, providing better water runoff and adding to the shed's overall durability.
• Transom windows (8′ wide units of Transoms are in door, 10′-12′ wide units of Transoms are above doors)

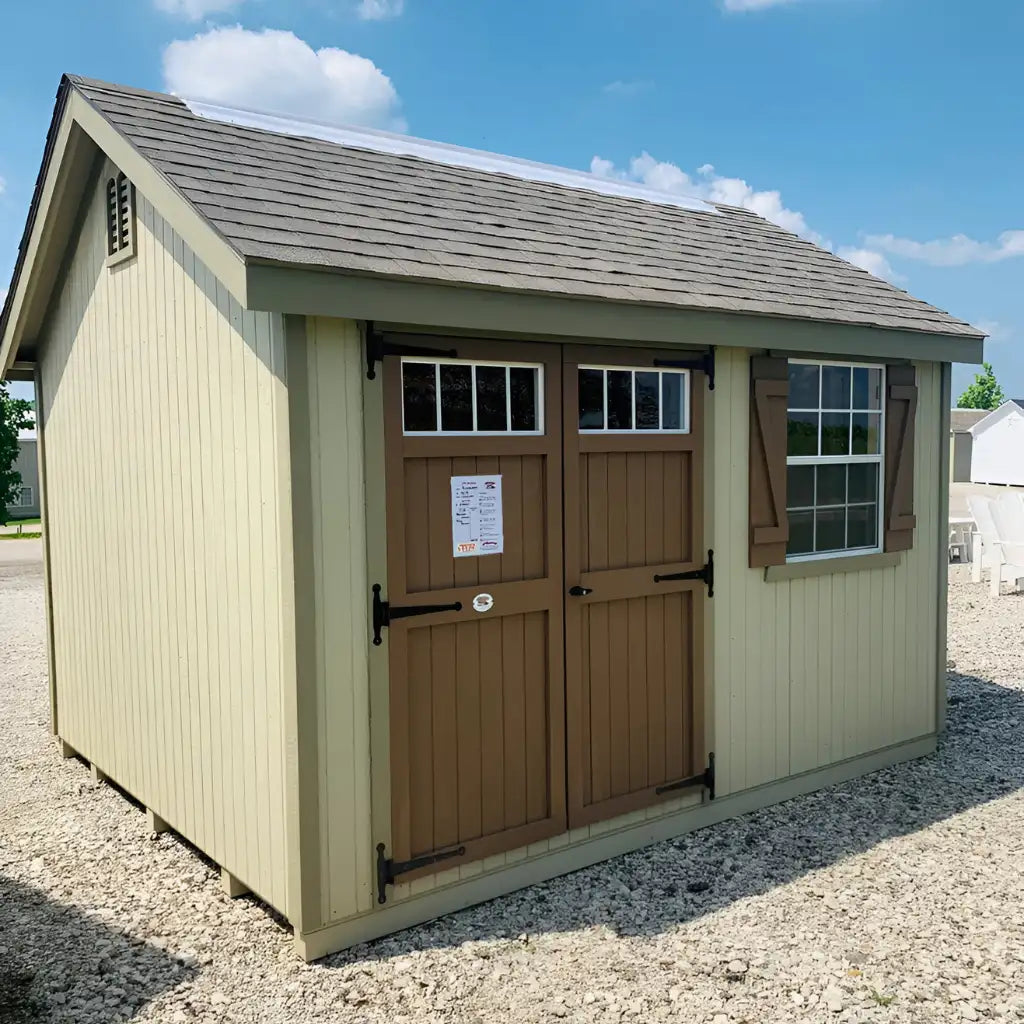

• The shed features a Colonial Door with heavy-duty hinges, two colonial louvers, and a flower box for extra beauty.
• Door opening 60″ x 72″ (on 10′ and 12′ wide buildings truss width)
• Door opening 60″ x 72″ (on 10′ and 12′ wide buildings truss width)

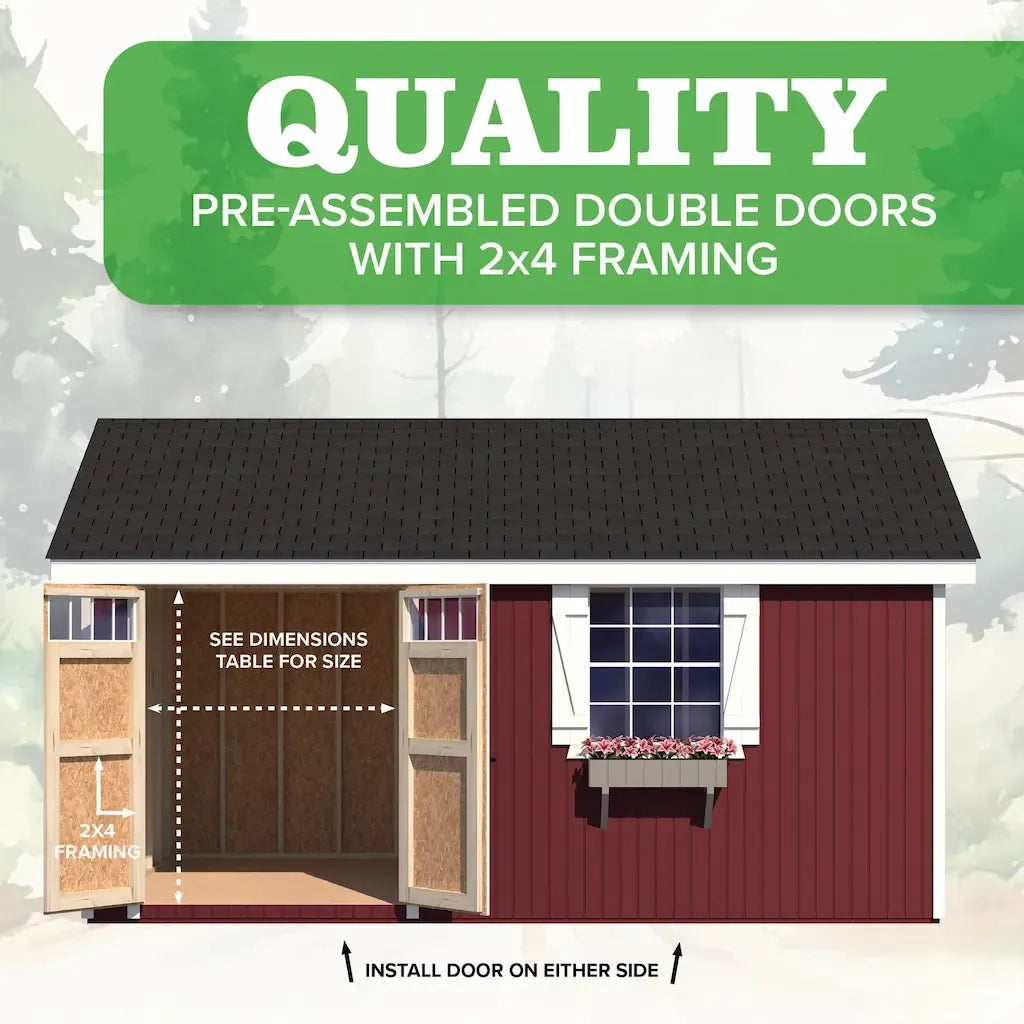

• 8' truss width units come with 4’w x 6’h double door openings while 10' to 12' truss width units come with 5’w x 6’h double door openings

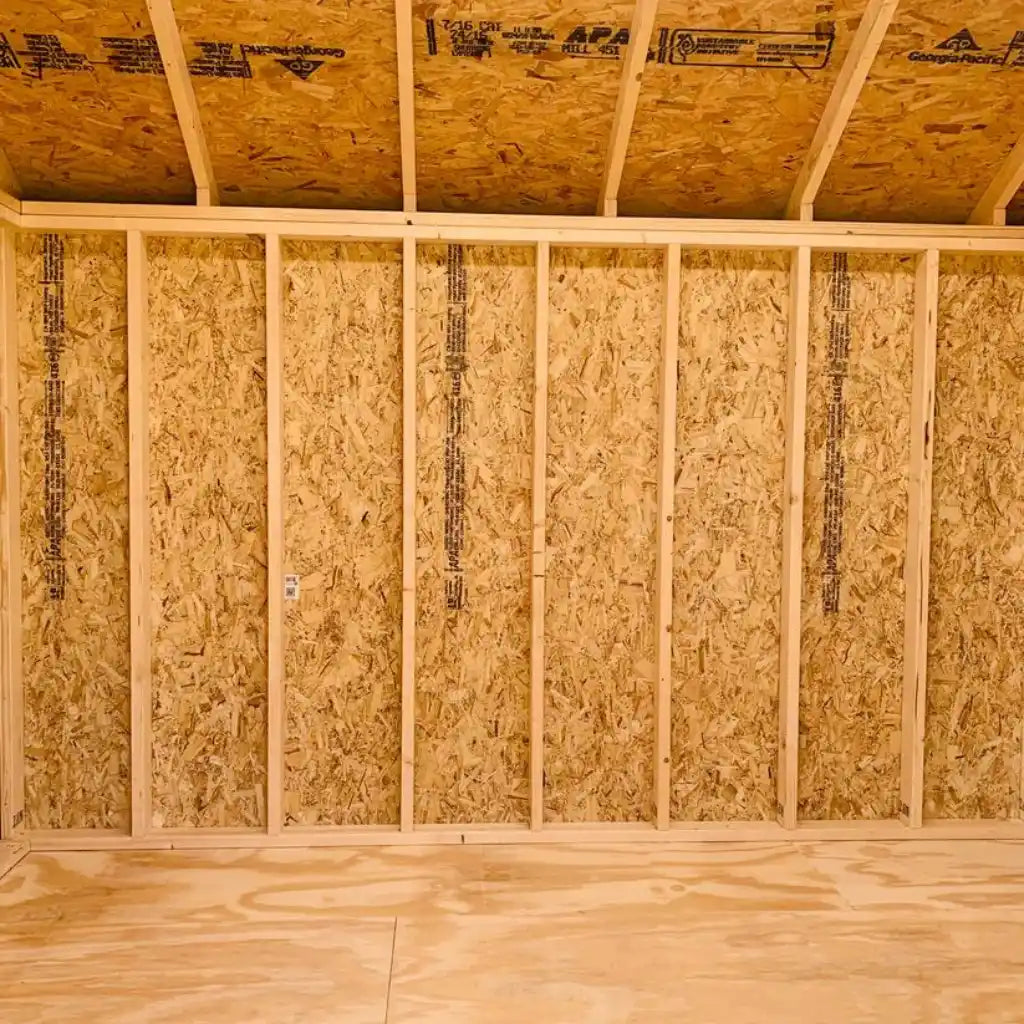

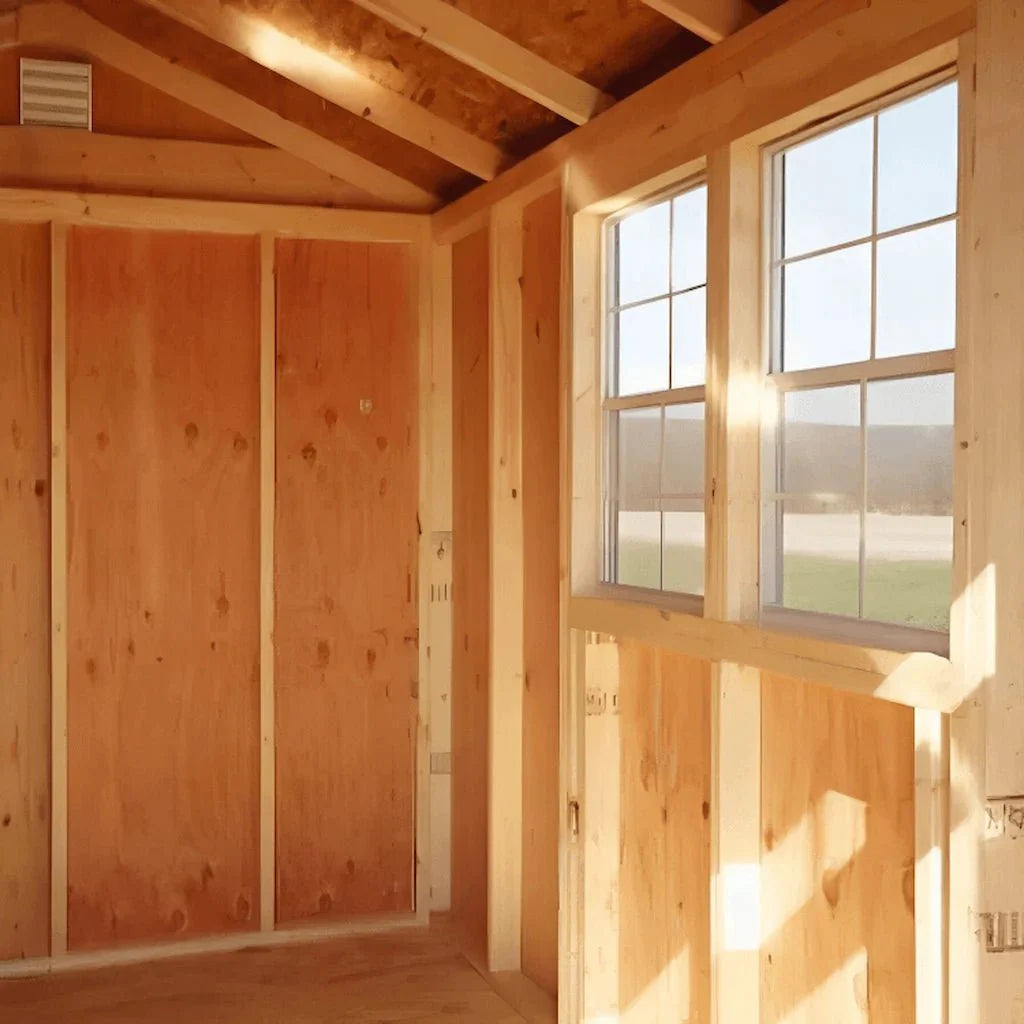

• 16" o.c. Wall Studs are incorporated to improve the structural integrity and longevity of the construction.
• Trim and siding are 98% primed so you don't have to spend hours prepping before painting or staining.
• All necessary hardware comes with the shed such as screws, latches, handles, nails

SPECIFICATIONS

Shed Type	Storage Shed
Wood Treatment	Pressure Treated
Color	Primed Tan
Material	Solid + Manufactured Wood
Paintable / Stainable	Yes
Foundation Required	Yes
Door Style	Double Door
Mold / Mildew Resistant	Yes
Rot Resistant	Yes
UV Resistant	Yes
Weather Resistant	Yes
Water Resistant	Yes

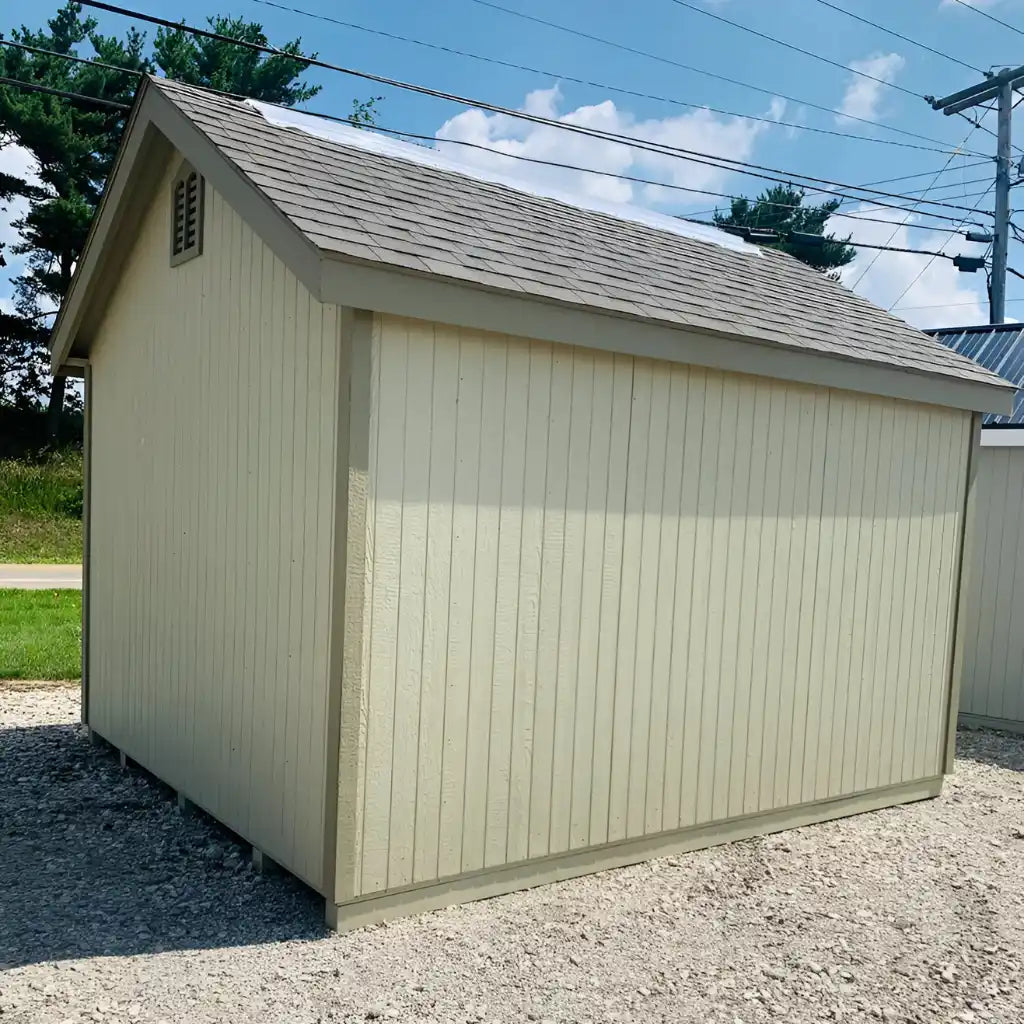

 Colonial Pinehurst Storage Shed SmartSiding walls

SmartSide Siding

SmartSide® products deliver all the warmth and beauty of traditional wood while delivering the enhanced durability and workability of engineered wood. With SmartGuard® technology, these products are built to outperform nature, providing exceptional strength, performance, and resistance against rot, termites, woodpeckers, hail, as well as the challenges posed by humid summers and cold winters. We’re proud to offer SmartSide® standard on all of our buildings.

Key Advantages

• 50-year prorated, limited warranty
• Treated with a Zinc Borate treatment
• Resistant to fungal decay and termite damage
• Attractive overlay on the interior
• Primed face



NOTE: If you want to increase the shed door width by 2 feet kindly contact us at info@homesteadsupplier.com

CUSTOMER PROVIDES

• Shingles
• Drip Edge
• Paint
• Floor (if the building is not purchased with a floor kit)
• If you will be preparing a cement/concrete slab, it would have to be exactly the same size as the unit. If the concrete slab is larger then you would have to trim the 3” skirting that falls below the bottom plate that is designed to wrap around the flooring.

The above items can easily be purchased by the customer at a local hardware store.

Pinehurst Kit Options:

• Windows 30x36 (installed by customer)
• 5’ Colonial door
• Cupola
• Floor Kit
• Flowerbox (wood)
• 4’ Colonial door
• Transom windows (Indoor only)
• Additional shutters

Optional floor kit:

• 2×4 treated floor joists – 16” O.C
• 5/8″ plywood Flooring material
• 4x4 treated runners
• The floor size should be exactly the same size as the building
• The optional Floor joist are 2 x 4’s – 16″ on center with 5/8″ CDX plywood
• Should you wish to purchase the 12x24 Floor Kit please contact us to get a shipping quote.

If You're Building your own floor

• the size of the floor will need to be the exact size of the Barn.
• We recommend a crushed stone base 1′ wider on either side of the Barn.
• The siding overlaps the side of the wood floor roughly 3″ and there is no moisture barrier. You can put this on a cement slab or wood floor – but accommodate for this
• You can retrofit for this but we do not provide instructions for this

 Pre-cut Colonial Pinehurst Garden Shed Manual

Do I need a Floor Kit? This depends on your preference. If you are not getting a floor kit from us, you can either build your own floor or create a cement slab for your shed. Please take note that it should be exactly the same size as the shed.

Additional Info:

Base: We recommend a crushed stone base, 1 foot wider than the building on all sides.

COMPARISON TABLE



Colonial Pinehurst	Colonial Williamsburg
High quality 7/16” LP® SmartSide® siding with grooves 4” on-center primed and ready to paint	High quality 7/16” LP® SmartSide® siding with grooves 4” on-center primed and ready to paint
76.5” sidewalls with 2”x4” wall studs 16” on-center	76.5” sidewalls with 2”x4” wall studs 16” on-center
7/16” OSB roof sheeting	7/16” OSB roof sheeting
Colonial double doors with locking handle	Colonial double doors with locking handle
Adaptive door location (choose your door’s placement on the eave side)
(1) working 30”x36” window with tempered glass, screen, and “Z” shutters	(2) side-by-side working 30”x36” windows with tempered glass, screens, and “Z” shutters
(2) transom windows with tempered glass in doors	8’ wide units have transom windows with tempered glass in door 10’ & 12’ wide units have transom windows with tempered glass above door
Wide Colonial trim	Wide Colonial trim
Large heavy-duty Colonial hinges	Large heavy-duty Colonial hinges
(2) Colonial louvers	(2) Colonial louvers
(1) flower box	(2) flower boxes

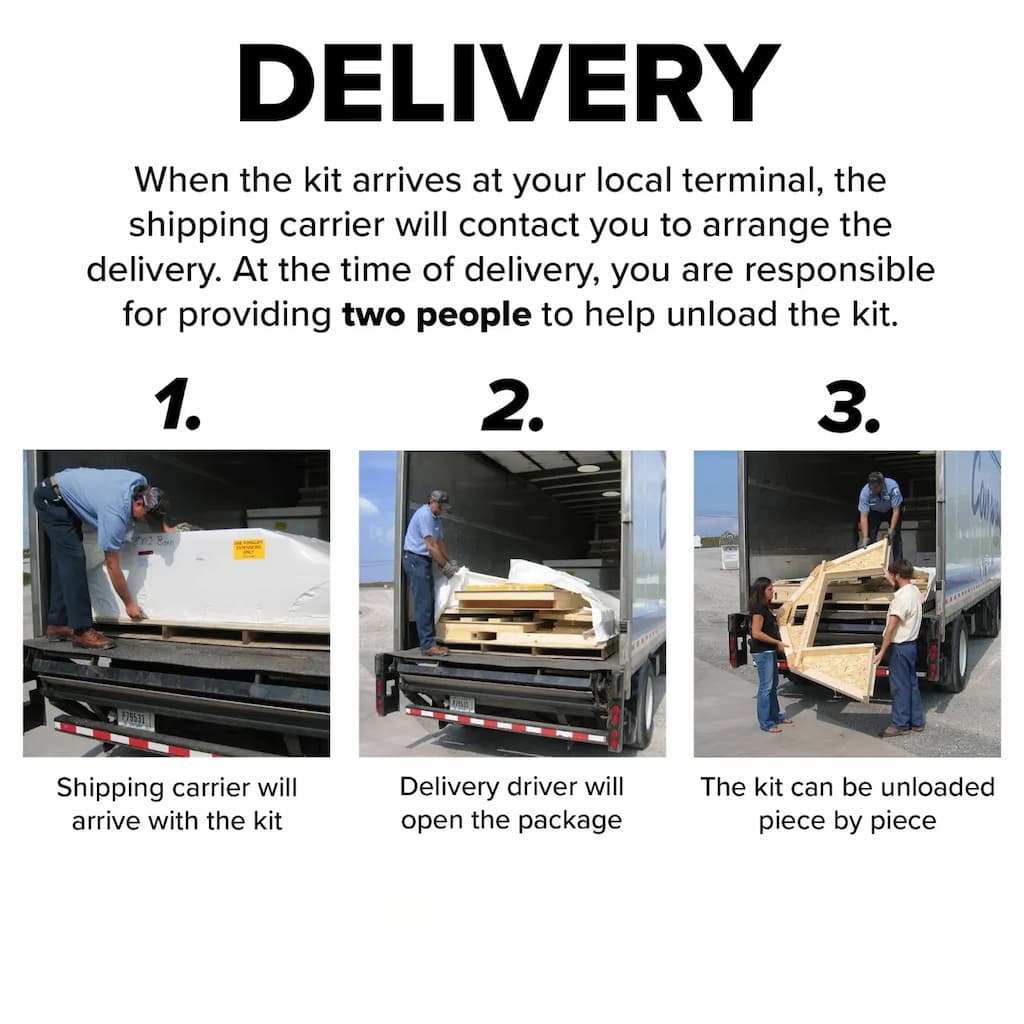

Two Person Delivery

Note: For residential deliveries, the customer will be notified with a phone call from the shipping company before the kit is delivered to them



Idea of what the kit will look like before shipping from our warehouse for delivery	When the pallet reaches the customer's local terminal, the shipping company will contact the customer to set up delivery	Pieces are packed onto the pallet individually. After the bands are cut from the pallet, the kit can be unloaded piece by piece
The customer is responsible for providing a minimum of two people at the time of delivery to help unload the kit	The delivery driver is not required to help unload the kit	Kit is unloaded!
Idea of what the kit will look like before shipping from our warehouse for delivery	When the pallet reaches the customer's local terminal, the shipping company will contact the customer to set up delivery
Pieces are packed onto the pallet individually. After the bands are cut from the pallet, the kit can be unloaded piece by piece	The customer is responsible for providing a minimum of two people at the time of delivery to help unload the kit
The delivery driver is not required to help unload the kit	Kit is unloaded!
